USB Explorer 200 - Hardware trigger

The USB Explorer 200 Professional Edition is equipped with a powerful and adjustable hardware trigger. It permits the triggering of specific actions when external events are occuring, when repetitive events take place or when specific event sequences are happening. The user interface handling is very swift. A text mode summary gives a glimpse of events and defined actions.

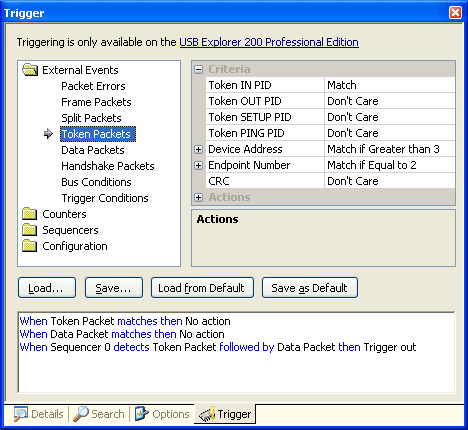

External events

The hardware triggering can detect numerous conditions available on the USB bus, primarily diverse type of USB packets, electrical conditions, errors conditions and external triggering conditions.

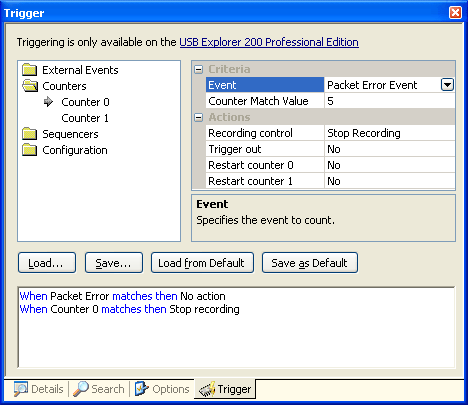

Events counters

Powerful and flexible events' counters are available. They permit to count simple external events but also events' sequences. The counters can be reset by any event occurrence.

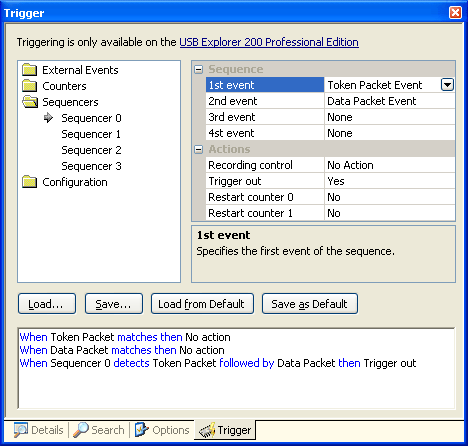

Events sequencers

Events can be sequenced to trigger action on complex conditions.
